Every component matters when it comes to the safety, reliability and performance of an automobile. A modern vehicle can contain 20,000 to 30,000 individual parts, and even a small variation or undetected defect in a critical component can have serious consequences. This is why non-destructive component testing has become an essential part of modern automotive manufacturing-not just for quality assurance but for ensuring that every component performs as intended.
Why Every Component Needs Reliable Inspection
Safety-critical automotive components often go through hot or cold forging to achieve the required hardness, strength and microstructure. But even with highly automated production, variation can occur. A change in furnace temperature, an unexpected heat treatment deviation or even an incorrect material mix can alter the properties of a component. These changes may not be visible, yet they can affect how the component performs in service.
The Smarter & Reliable Tool: Magneto-Inductive Eddy Current Testing
Magneto-Inductive eddy current testing provides manufacturers with a way to inspect components without damaging them. The technique uses controlled magnetic field to generate eddy currents in the material. By analysing changes in magnetic permeability and electrical conductivity, manufacturers can identify variations in material properties and manufacturing processes.

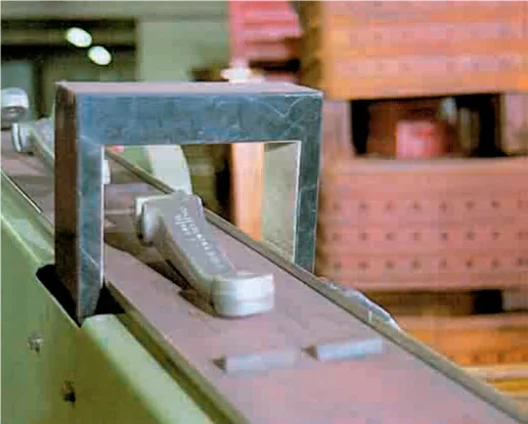

What makes the approach particularly valuable is its ability to support 100% inspection. Components can be tested individually and then continue through the production process without being marked or damaged.
The technology can help identify variations related to following factors:
- Heat treatment condition
- Hardness and tensile strength
- Material mix -up and alloy verification
- Case hardening and hardening depth
- Microstructure consistency
This means manufacturers can detect process deviations earlier, improve production control and reduce the chances of defective components reaching the next stage.
FOERSTER Solutions for Reliable Non-Destructive Component Testing

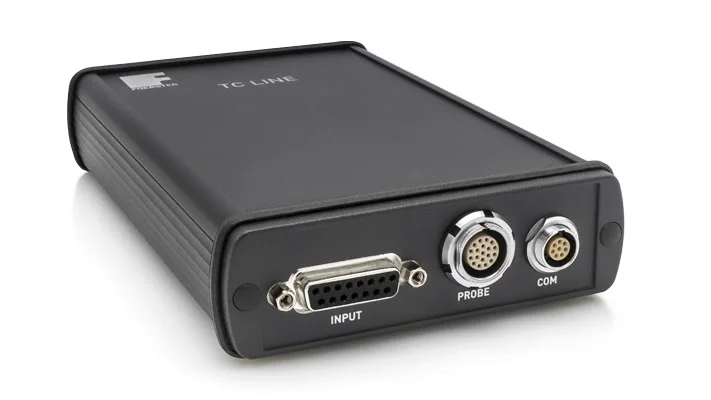

MAGNATEST TCL – Compact, Smart & Efficient
The MAGNATEST TCL is designed for reliable non-destructive testing in both automated and manual production environments, eddy current testing for 100% inspection. The MAGNATEST TCL system consists of the channel line (TCL) and a PC with testing software for automated inspection. FOERSTER offers an industrial PC equipped with an interface module.
Key features
- Compact design
- Intuitive software
- Automatic sensor recognition
These features make it practical for day-to-day quality inspection.
Automatic sensor recognition further simplifies operation, making the system well suited for applications. The modern software of the TCL test system is intuitive and optimized for touch operation. Embedded help screens and wizard are available for setting up test parameters, enhancing the user experience for eddy current Hardness Sorting Machine application.
Advantages of using MAGNATEST TCL
- Magneto-Inductive Testing with fundamental and harmonic evaluation. Broad frequency ranges from 4HZ to 20Mhz, continuously adjustable in 1Hz steps.
- 100% control using non-destructive testing methods. This is ideal for all eddy current testing environments.
- State -of -the Art software with intuitive user interface support functions ensure easy operation during parameterization.
- Improved test Quality as short cable runs between the MAGNATEST TCL and the sensor minimize interference.
- Innovative probe recognition with data chip automatically recognizes the probe directly loading its setting.
- Easy automation and line integration via I/O interface.

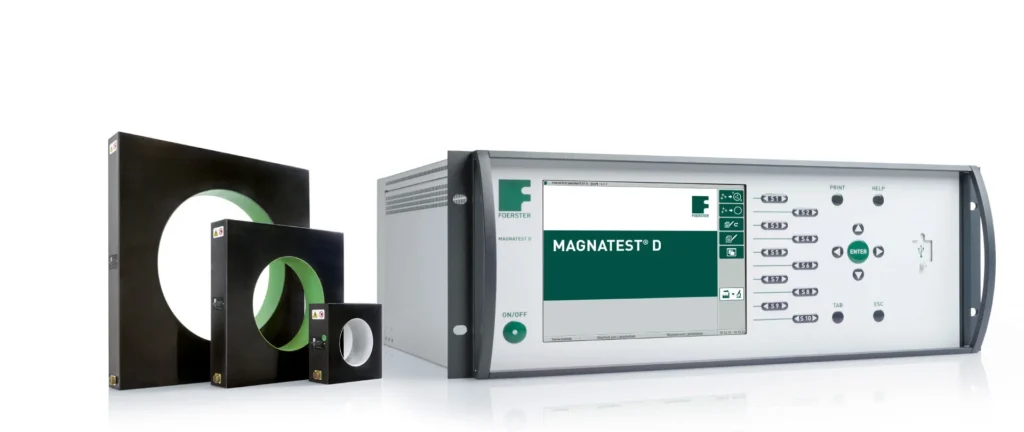

MAGNATEST D – Advanced Testing for Complex Applications
When inspection requirements become more complex the MAGNATEST D provides advanced testing capabilities. By combining multi-frequency testing with harmonic analysis to deliver superior accuracy. It enables detailed evaluation of material and process related variations. The test results are documented via test piece statistics, histogram and test data exports, which are displayed clearly on the touch display. This ensures maximum reliability for demanding quality control applications.
Advantages of using MAGNATEST D
- Processor controlled testing system.
- Single coil absolute operation therefore no comparison coil required.
- Optional adapter for two coil differential operation.
- Load independent induction current, therefore constant induction current intensity and constant magnetic field strength during the testing
- High induction current intensity thus stimulation of higher harmonics and particularly high-test sensitivity to the magnetic characteristic of the test material.
- Single frequency or multi frequency testing harmonic analysis.
Ensuring Trusted Quality
In high volume manufacturing quality cannot rely on sampling, every component leaving the production line represents the manufacturer’s commitment to safety and reliability.
100 % non-destructive is essential for zero defect modern manufacturing FOERSTER India’s advanced eddy current inspection. It can reduce scrap, minimise recalls, improve process control and provide greater confidence in the consistency of every component.
With advanced magneto-inductive and eddy current inspection solutions, manufacturers can move towards a simple but powerful objective -Inspect every part without damaging a single one.
With solutions such as MAGNATEST TCL & MAGNATEST D, FOERSTER enables faster, reliable and automated component inspection—helping prevent defective parts from reaching the next production stage.
For Us When Every Part Matters, Every Inspection Counts.
To Automate your NDT Inspection & to get more information, please get in touch with our Sales Team.
Frequently Asked Questions
What is 100% component testing?
100% non-destructive testing means inspecting every component without damaging it. It helps to ensure that each part meets the required quality standards before moving into the next stage of production or reaching the customer.
What is Magneto-Inductive testing?
Magneto-inductive testing is a non-destructive method that evaluates changes in the magnetic and electrical properties of materials. It can be used to assess properties such as hardness, heat treatment, case depth, and microstructure.
Can Magneto-Inductive testing be used for hardness testing?
Yes. Magneto-inductive testing can be used for non-destructive hardness verification when a suitable correlation between the measured electromagnetic properties and hardness has been established.
Is Magneto-Inductive testing destructive?
No. It is a non-destructive testing method that evaluates the material without damaging the component, making it suitable for 100% production testing.
Can Magneto-Inductive testing detect heat treatment variation?
Yes. It can detect changes in material properties caused by variations in heat treatment, such as differences in hardness, case depth, and microstructure.
Difference between Eddy Current testing and Magneto-Inductive testing?
Both use electromagnetic principles. Eddy-current testing is widely used for detecting defects such as cracks, while magneto-inductive testing is particularly suited to evaluating material properties and microstructure.
Which components can be tested using MAGNATEST products?
MAGNATEST systems can test a wide range of metallic components, including shafts, gears, brakediscs, ballpins, Tulips, CV joints, camshafts, pins, fasteners, and other heat-treated components. Applications include hardness verification, material sorting, heat-treatment, and microstructure testing.
How do I choose the right FOERSTER testing system?
The right system depends on the material, component geometry, required inspection, testing speed and level of automation. FOERSTER India can recommend the appropriate testing solution based on your specific application.
