Complete EMI Testing Line for Oilfield Tubular Goods

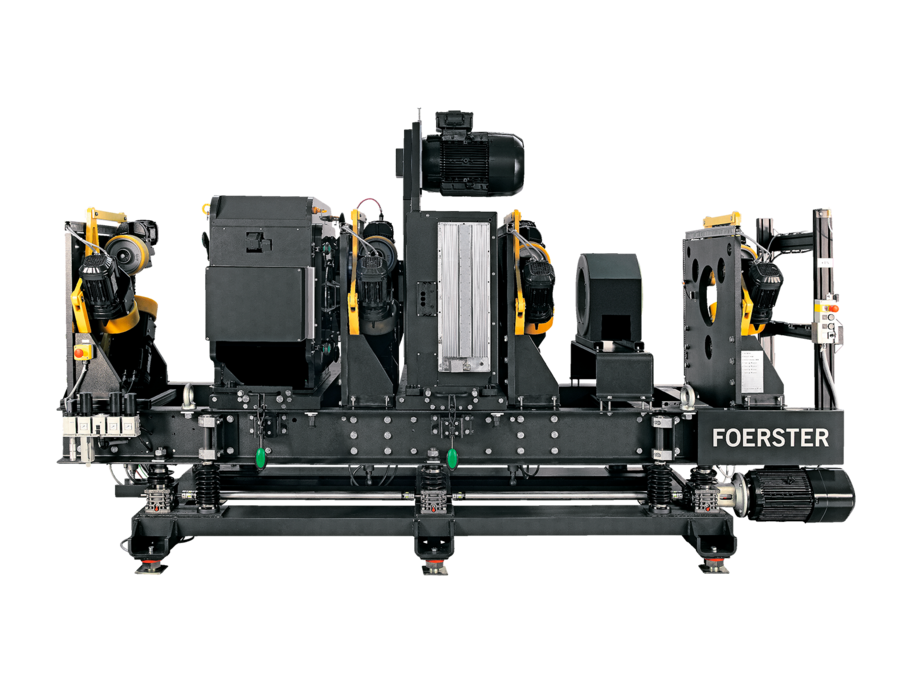

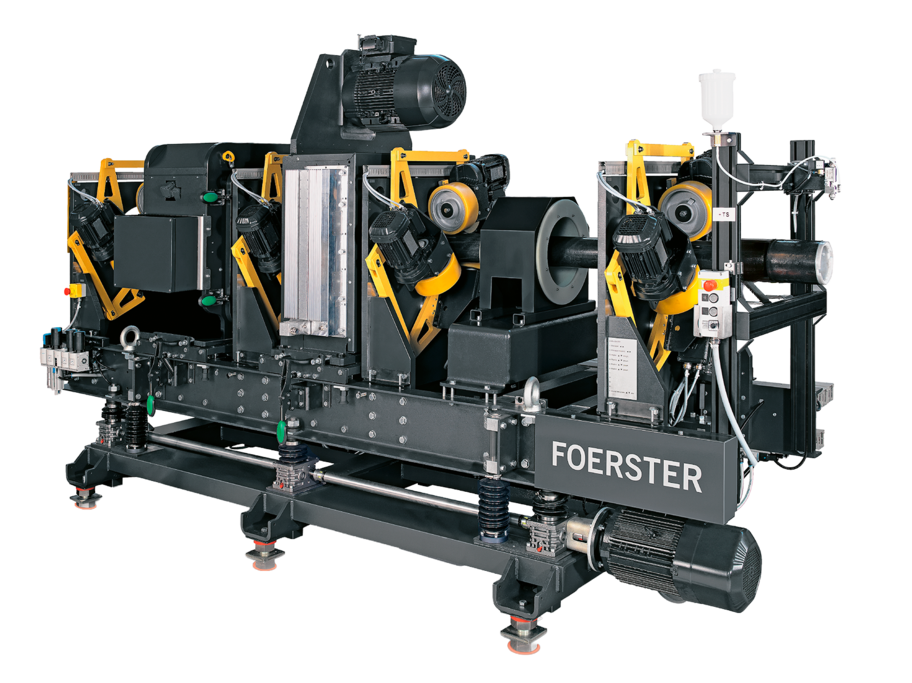

Built for OCTG Inspection Excellence. PIPEPROOF is a turnkey electromagnetic inspection (EMI) testing line specifically designed for the demanding requirements of the OCTG industry. It enables pipe processors, threading companies, coating providers and heat treatment specialists to reliably meet the quality standards of the global oil and gas market.

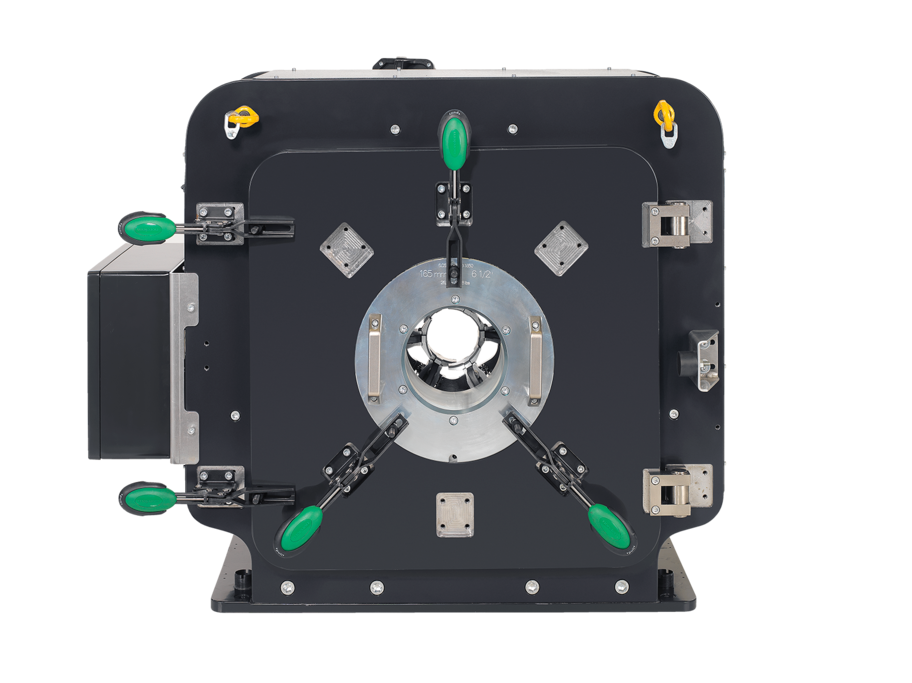

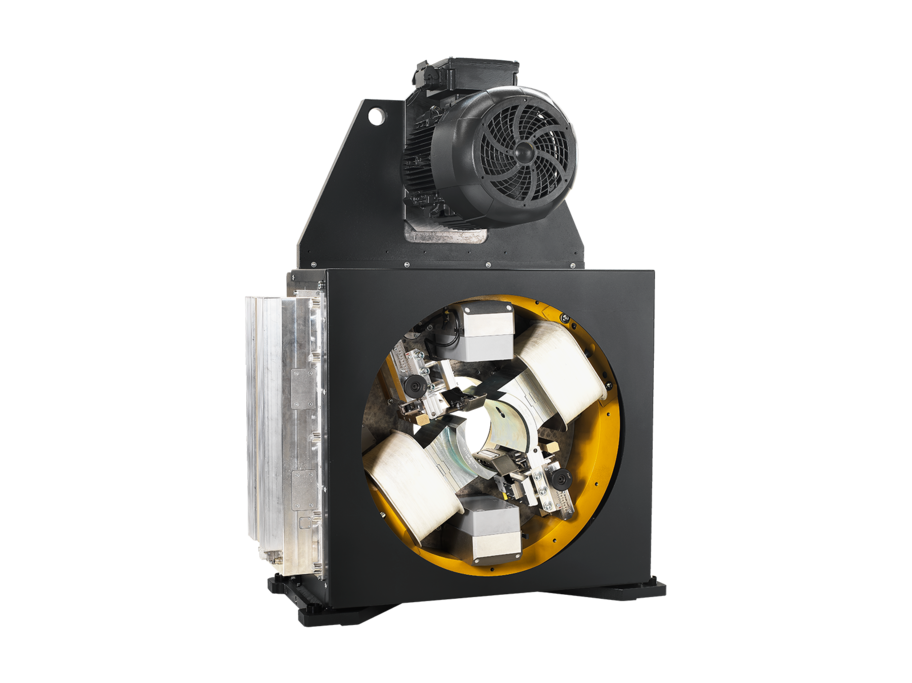

The system combines the proven ROTOMAT DA and TRANSOMAT DA magnetic flux leakage technologies to provide comprehensive inspection of ferromagnetic steel pipes. While the ROTOMAT DA detects longitudinal defects, the TRANSOMAT DA identifies transverse defects and simultaneously performs wall thickness monitoring. Together, both systems deliver reliable 360° inspection of the pipe’s inner and outer surface.
Advanced sensor array technology, high-definition C-Scan visualization and intelligent evaluation algorithms enable the reliable detection of natural defects, including short and oblique indications that are often difficult to identify using conventional inspection methods. Designed around industry requirements and API specifications, PIPEPROOF offers outstanding repeatability, minimized untested ends, short changeover times and maximum system availability.
Available in two size ranges, PIPEPROOF can be tailored to different pipe diameters while maintaining the same high inspection performance. The result is a complete testing solution that combines superior defect detection, operational efficiency and long-term reliability.
Your advantages at a glance
- Complete EMI Testing Line: Turnkey inspection solution with integrated sensor systems, mechanics and evaluation electronics for OCTG applications.
- 360° Defect Detection: Reliable detection of longitudinal, transverse and oblique defects on both the inner and outer pipe surface.
- Integrated Wall Monitoring: Simultaneous detection of wall thickness reductions for comprehensive quality assessment.
- High-Definition C-Scan Visualization: Real-time display of inspection results enables precise defect localization and evaluation.
- Outstanding Repeatability: Optimized enclosed testing concept ensures highly repeatable and reproducible inspection results.
- Short Changeover Times: Complete size change and calibration can be performed in less than 20 minutes, minimizing downtime.
- Minimized Untested Ends: Reduced end areas increase the effective inspection coverage of every pipe.
- Maximum System Availability: Robust design and minimized maintenance requirements ensure high operational uptime.
- API-Oriented Inspection: Developed to meet the requirements of API specifications and other international standards.
- Easy Integration: Compact footprint and turnkey design allow seamless integration into existing production and inspection environments.
Technical information
| Test methods: | Non-destructive testing with Direct Current Magnetic Flux Leakage (DCMFL) to detect longitudinal, transversal, oblique, external and internal defects |
| Pipe end condition: | Plain, upset or threads and couplings |
| Test material: | Round ferromagnetic steel pipes (seamless or longitudinally welded) |
| Nominal pipe diameter: |
|
| Wall thickness monitoring: | down to 5% wall thickness reduction |
| Untested ends: | max. 4” (100 mm) |
| No. of channels: |
|
| Test head operation: |
|
| Testing speed: |
|
| Straightness: |
|
| Pipe temperature: | 5 – 80 °C (41– 176 °F) |
Contact us to discuss about PIPEPROOF- the Complete EMI Testing Line for Oilfield Tubular Goods
